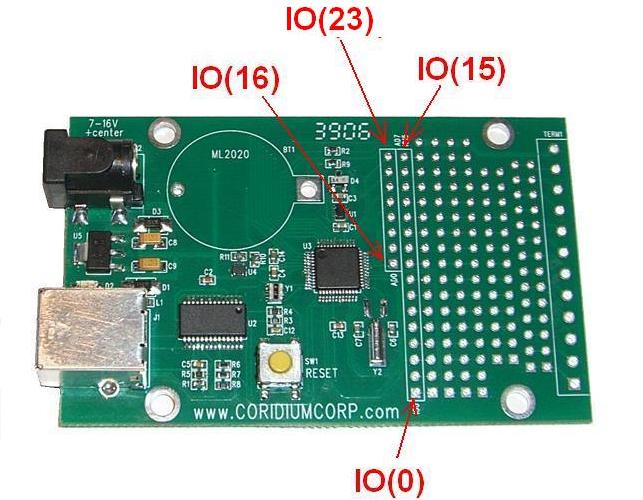

ARMmite Pin Description

24 pins available to the user, 8 of which can be analog inputs



IO(0)
IO(1)
IO(2)
IO(3)
IO(4)
IO(5)
IO(6)
IO(7)
IO(8)
IO(9)
IO(10)
IO(11)
IO(12)
IO(13)
IO(14)
IO(15)

P0(9)
P0(8)
P0(30)
P0(21)
P0(20)
P0(29)
P0(4)
P0(5)
P0(6)
P0(7)
P0(13)
P0(19)
P0(18)
P0(17)
P0(16)
P0(15)

RXD(1)
TXD(1)












EINT0
EINT2

PWM1
PWM2
PWM3
PWM4
PWM5




PWM6
PWM7
PWM8



Input/Outputs  -- user controlled

0-3.3V level

4mA drive when configured as Outputs

5V tolerant

- use limiting resistor when connecting to a 5V supply





IO(15) connected to LED

AD(0)
AD(1)
AD(2)
AD(3)
AD(4)
AD(5)
AD(6)
AD(7)

P0(22)
P0(23)
P0(24)
P0(10)
P0(11)
P0(12)
P0(25)
P0(26)

IO(16)
IO(17)
IO(18)
IO(19)
IO(20)
IO(21)
IO(22)
IO(23)


10 bit A/D inputs

may also be used as digital Input/Outputs IO(16-23)

-- user controlled

when used as analog lines,

voltage levels should not exceed 3.3V


Dual Use AD pins

On reset or power up the AD pins are configured as AD inputs.  To change those to digital IOs, the user must individually specify a control direction using INPUT(x), OUTPUT(x), DIR(x), or IO(x) commands.  After that they will remain digital IOs until the next reset or power up.

PWM pins

All pins can be used for the software PWM function, and 8 pins can be used for the hardware driven HWPWM function.

Battery Real Time Clock

The ARMmite board is designed to accept a Panasonic ML2020/H1C rechargeable Lithium battery at position BT1. This battery powers the real time clock of the LPC2103.  The contents of RAM is not kept alive while running on battery, and the CPU restarts the user program in Flash when power is restored.  This battery is designed to maintain power for a few days without power, and will recharge fully in about 1 day.

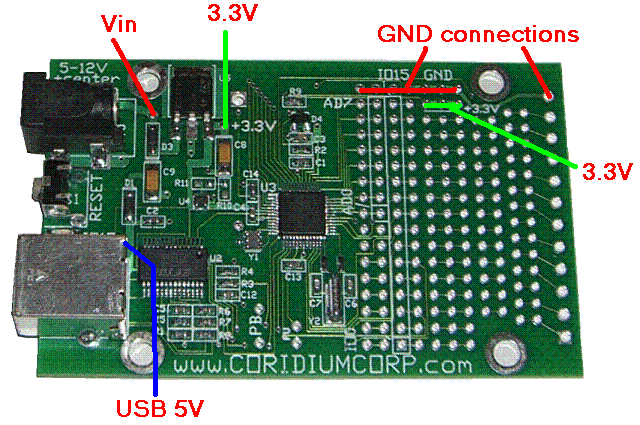

Power connection

Power when not being supplied by a USB connection uses a 2.1mm barrel connector (Cui PJ-002A). Diodes allow both USB and separate power to be connected simultaneously.  If you are using an unregulated wall transformer, you must check the open circuit voltage and it MUST be less than 12V.

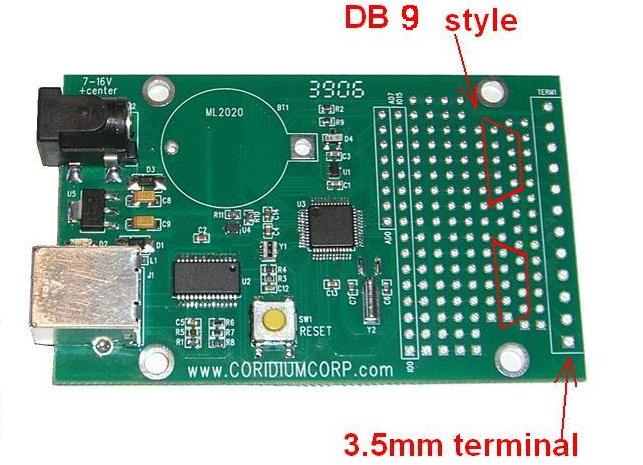

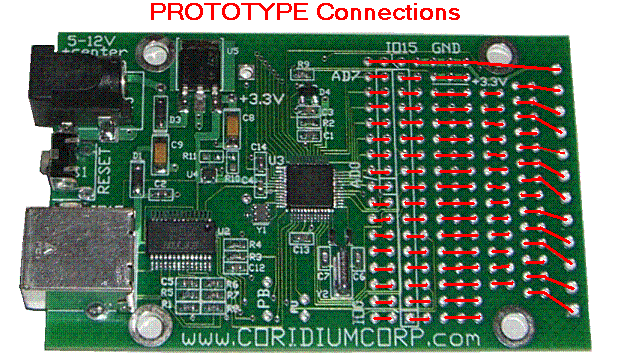

Pin spacing

The spacing in the prototype area is 0.1" and the terminal strip row on the right side is designed for 3.5mm terminal strips.

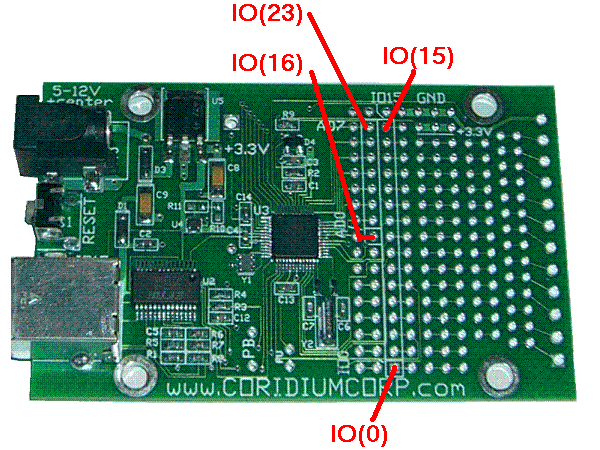

REV 3


When USB power is not used, a 5-12V supply is required.  If 5V is required for some portion of your circuit, it is suggested that a regulated 5V supply be used for input power.  These are available from SparkFun.

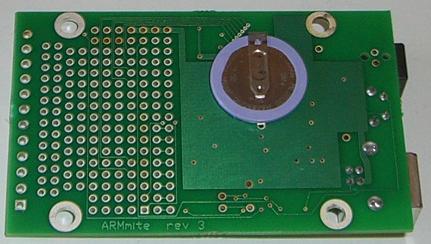

A push button switch and pull-up resistor can also be mounted (connected to IO(2)). The optional battery for the real time clock (Panasonic ML2020) can be mounted on the back of the PCB.  The VL2020/HFN will also work, though it is more expensive and has less power.


_____________________________________________________________________________________________________


REV 2

suggested terminal strip On Shore Tech ED550/12DS or equivalent 3.5mm pitch connector (available at Digikey)
