PROstart Pin Description

 product preview



The PROstart is footprint and pin compatible with the Arduino PRO.

BASIC or C programs can be downloaded using the installed test connector using the USB dongle contained in Coridium's evaluation kit or using the SparkFun USB Basic Breakout board or FTDI cable from Digikey.  More details on these connections here .

Digital IO connections

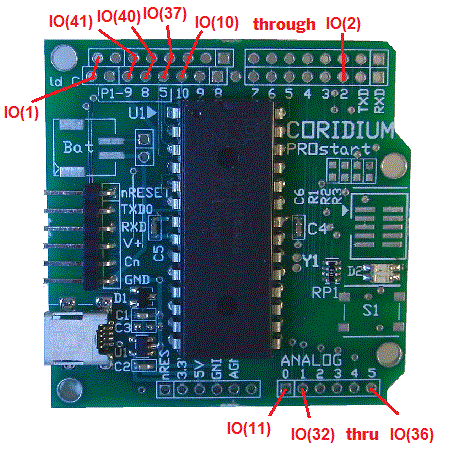

Port pins can be controlled with theIN, OUT... keywords .  For port 1 pins are accessed with IO(32) through IO(41).
IO(4) and IO(5) are open-drain outputs, so for those to go high, you need to have a pull-up resistor (1K to 10K are good values, depending on the speed required).
Special purpose pins

The LPC1114 supports a number of dedicated functions.  Those include 4 timers, 2 SPIs, and I2C.

In addition most can be configured with pull-ups or pull-downs and default to pull-ups following reset.

Details can be found in NXP's User manual.
Analog connections
6 A/D converters are readily available, Analog 0-5.
On reset or power up the AD pins are configured by software as AD inputs.  To change those to digital IOs, use IO(11), IO(32) through IO(36).  Those pins will remain digital IOs until the next reset or can be changed back to A/D by writing to the PINSEL register.
The LPC1114 does not support an external reference for the A/D converters.
The A/D input requires a drive impedance of 7.5K or less (see NXP LPC175x spec sheet).
Power connections -- SuperPRO
The board is shipped with a USB mini B type female connector for power, it is not a USB port.  With the wide availability of USB chargers, this is becoming the most cost effective method of powering small electronics.
Pads for a  a 2mm power jack compatible with a JST PHR/S2B or SparkFun PRT8671 for various battery packs from SparkFun are available, but not loaded in the basic configuration.
Diode steering allows power to be supplied from 5V USB, the USB test connector, or the battery connector.  Because of the Schottky diodes, all 3 power sources can be connected simultaneously.
The schematic below describes this circuit on the PROstart


Power connections details
The 3.3V regulator can supply 150 mA, with 10 mA being used by the LPC1114.
The analog GND should be used to connect to the GND of analog inputs.  Digital and Analog GNDs are connected together with a small trace, but to minimize noise you should use the analog GND only for analog signals.

Jumpers and test connector for Program Download

The USB Dongle from Coridium or FTDI cable will supply 5V from the USB to power the PROstart.  The Coridium USB dongle also controls the RESET and BOOT signals to automatically load C or BASIC programs using MakeItC or BASICtools.  Remember, if you load a C program, it will erase the BASIC firmware and you will not be able to load BASIC programs after that.

When using the SparkFun FTDI Basic Breakout Board, a limited amount of power can be supplied from the BBB, but this is limited to 50 mA and after diode drops, its about 2.8V to the LPC1114.  In practice this will run, but it is outside the part specifications, so it should be limited in use.

Also with the SparkFun FTDI Basic Breakout Board or FTDI cable to load a C program, the LOAD C jumper needs to be installed, then removed to run the program.  The Coridium USB dongle controls the BOOT signal so C programs can be loaded without the jumper.

BASIC programs can be loaded and controlled using the Cordium USB dongle, FTDI cable, or SparkFun board, with no additional steps/jumpers.

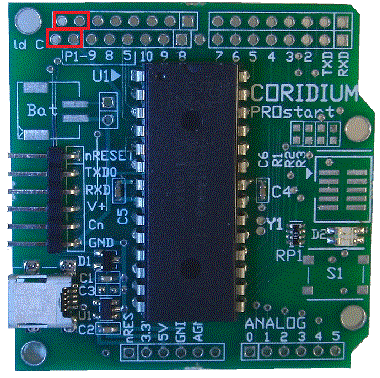

An alternative is to use a 2 pin header with a shorting block (pictured below)
