SuperPRO - LPC1756

Arduino shield footprint compatible. Eight times the memory of competitors, Four times the RAM of competitors, 52 inputs and outputs.

Our most popular board.

$55

After your purchase download our BASIC tools from this page.

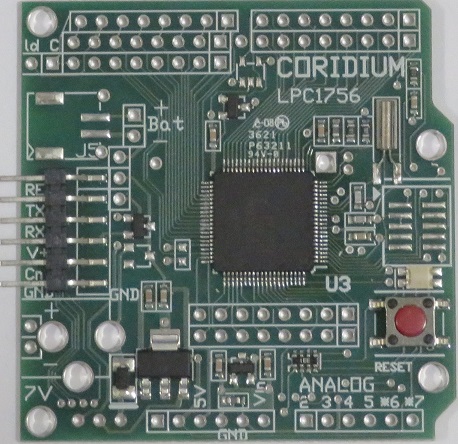

LPC1756-Arduino

Starter Kit recommended for first time buyer $70

→ View Shopping Cart 🛒 .

System

  • 100 MHz Cortex M3 CPU LPC1756 details here
  • RTC crystal and oscillator

Size

  • 2.1” x 2.05”

Storage

  • 256K Flash code space
  • 32k RAM

Power

  • 5-7V DC input
  • Provides 500 mA +5V

Connectors

  • Debug connector
  • Connections for 52 digital I/O
  • 4 x 12 bit analog A/Ds
  • 1 10bit DAC

Schematic here

USB Programming adapter sold separately or bundled in the Starter Kit
