Data Logger - LPC4330 eval

$60


Nearly every peripheral including the kitchen sink. Powerful programmable parallel/serial shift engine, can be used for camera and display.

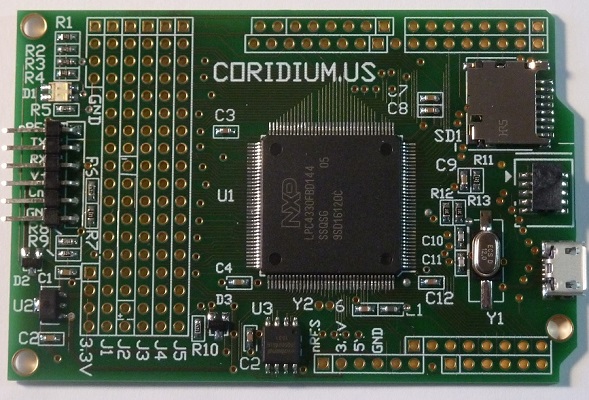

Arduino-LPC4330

buynow

A standard USB dongle is required.

Schematic here

System

  • Dual 200 Mhz ARM CPUs LPC4330
  • Floating point hardware accelerator
  • SDcard Flash file system
  • 83 inputs and outputs
  • 8 x 10bit analog A/Ds, 1 10bit DAC
  • 4 UARTs with DMA support
  • 2 I2C
  • 2 I2S with DMA support
  • 2 CAN controllers
  • Flexible GPIO interrupts
  • 8 timers
  • Motor PWM
  • Quadrature encoder
  • 2 USBs
  • Ethernet MAC
  • Flexible serial GPIO capable of camera/display
  • optional RTC with battery backup

Size

  • 3.2” x 2.05”

Storage

  • 8MB Flash
  • 264K RAM
  • micro SDcard socket

Power

  • 5V DC input

Connectors

  • Arduino-shield compatible
  • Debug connector
  • JTAG connector

USB Programming adapter sold separately
