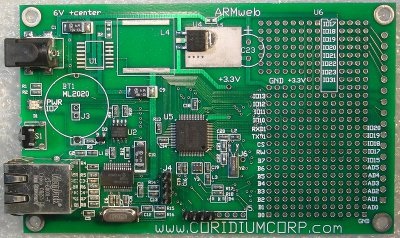

The ARMweb is no longer available, the LPC2138 it is based on is obsolete and out of production and no longer available.

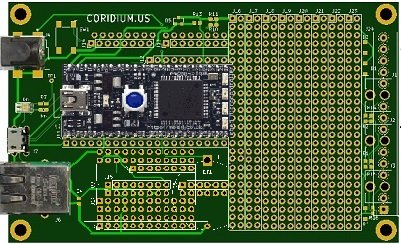

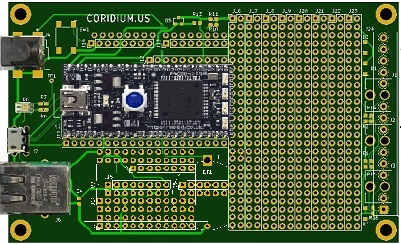

But we have built a carrier PCB for an mBed LPC1768 that has all the features and more.
replaces
We only built a few prototypes, but could take an order for some. Contact sales Details of the design in the blog.
CPU
- LPC1768 100 Mhz M3 -- mBed board not normally supplied by Coridium
Size
- 75 x 120 mm
- Compatible with Hammond 1455K1201 enclosure
Storage
- 512k Flash code space
- 32K RAM
- 224k web page space in Flash
Power
- 750 mW
- 5-6V DC input
- Provides 500 mA +5V
- Battery RTC option
Connectors
- RJ-11 Ethernet
- Connections for 31 digital I/O
- 8 x 12 bit analog A/Ds
- Accepts 0.1” components and 3.5mm terminal strips
Prototyping Area
- 4 square inches
